Drone Area

Our equipment is validated under the most demanding operating conditions in order to guarantee its quality, reliability and performance. The HERCULES X4 and HERCULES X8 industrial drones are manufactured with 100% Colombian engineering, this makes it easier for us to offer after-sales services, warrantees, training, certifications, and consultations without depending on third parties abroad. On the one hand, we sell Black Square brand drones and on the other, we provide remote sensing services, which includes equipment rental with specialized operators.

Hercules Equipment

QUADCOPTER	Rotor Configuration	OCTOCOPTER
0 - 6 kg	Payload Capacity	6 - 12 kg
30 - 55 min	Flight Time	15 - 55 Min
1091 mm	Diameter Motor to Motor	1091 mm
6.3 kg	Weight of Empty Frame	8.3 kg
T-MOTOR U8II x 4	Motors	T-MOTOR U8II x 8
12 cells 44.4 V (x1)	Batteries	12 cells 44.4 V (x2 / x4)
T-MOTOR MF2815 FOLDING	Propellers	T-MOTOR FA28.2x9.2 FOLDING
CUBE ORANGE	Flight Controller	CUBE ORANGE
DUAL GPS HERE 3	GNSS System	DUAL GPS HERE 3

Services

Photogrammetry

Detailed land mapping

Detailed land topography

Delimitation and measurement of areas

Volumetry and inventories

Thermal

✔ Heatmap generation

✔ Water stress detection

✔ Liquid and gas leak detection

✔ Infrastructure thermal evaluation

Magnetometry

✔ Ferromagnetic exploration

✔ Mineral resource detection

✔ Geological limits

✔ Characterization of aquifers

Multispectral

NDVI index
Chemical quantification
States Identification
Species identification

Solar Panels

Performance analysis
General visual inspection
Crack and fissure detection
Predictive maintenance plan

Electrical Towers

Structural inspection of towers and supports

Power line inspection

Control of security zones

Predictive maintenance route

Wind Turbines

Performance analysis

Inspection of wind turbines and assets

Performance of maintenance and repairs

Control of security zones

Work Progress

Asset Inspection

Generation of tracking maps

Detailed land surveying

Volumetry and inventories

¡Recuerda la invitación a nuestro #webinar maña

¡Recuerda la invitación a nuestro #webinar mañana 21/02/23!

Hora: 10:00 - 11:30 AM (Hora Colombia)
🔗 bit.ly/webinarscambioc

Webinar gratuito sobre la “Evaluación de Entornos Urbanos y Ecosistemas Naturales a través de Sensores Hiperespectrales y LIDAR Instalados en Aeronaves Tripuladas”.

En este evento, el Ing. Juan Manuel González con experticia en el campo de la teledetección aérea, nos guiará a través de los fundamentos de estas tecnologías de sensores remotos y cómo se utilizan para medir y analizar características clave de los entornos urbanos y ecosistemas naturales. Además, aprenderemos cómo estas herramientas pueden ayudar en la toma de decisiones y la gestión de recursos naturales, específicamente en las áreas de:

· Cartografía de Ciudades
· Calidad del Agua
· Clasificación de Especies
· Secuestro de Carbono
· Techos de Asbesto

El webinar incluirá presentaciones especiales, aplicaciones de la tecnología, ejemplos prácticos y casos de éxito. Además, tendremos la oportunidad de hacer preguntas y participar en discusiones en vivo. No te pierdas esta oportunidad para actualizarte sobre lo último en sensores remotos para la evaluación de entornos urbanos y ecosistemas naturales. Guarda el Link y agéndalo como una cita.

¡Te esperamos!
🔗 bit.ly/webinarscambioc

Invitan:
@geocamingenieria, @rutan_med, @blacksquaresas, #WESHAREIQ, #NorskElektroOptikkAS @hyspex

#webinar #gratis #oportunidad #hiperespectral #innovacion #medioambiente #remotesensing #survey #Colombia #tecnologia

Hoy hemos tenido la oportunidad de participar en u

Hoy hemos tenido la oportunidad de participar en una capacitación práctica sobre el uso de drones para los alumnos del #SENA: Centro Industrial de Mantenimiento y Manufactura - Regional #Boyacá. La tecnología de los drones está en constante evolución y es importante que los jóvenes tengan la oportunidad de experimentar con ellos y conocer sus aplicaciones en el mundo laboral.

Durante la capacitación, los alumnos aprendieron sobre los componentes básicos de la aeronave, su funcionamiento, seguridad y regulaciones generales. Además, tuvieron la oportunidad de operar nuestra última versión del #HERCULES X4 y experimentar con diferentes ejercicios prácticos.

Es emocionante ver la pasión y el interés de los jóvenes por esta tecnología y esperamos haber contribuido a su formación y crecimiento profesional. Esta tecnología tiene un gran potencial y anhelamos ver a estos jóvenes utilizándola de manera innovadora y responsable en el futuro.

Estamos agradecidos por la oportunidad de participar en este proyecto y por todo el apoyo de los lideres SENA. Esperamos continuar aportando nuestro granito de arena a la educación y el desarrollo profesional de los jóvenes de Colombia. #SENA #Drones #Tecnologia #Educacion #BlackSquare #Innovacion #oportunidad #colombia #futuro

A successful demo of our #HerculesX8 carrying a Hy

A successful demo of our #HerculesX8 carrying a HySpex #MjolnirVS620 for the @ctmarmol in Murcia, #España

#hyperspectral #dron #uav #heavylifter

Perfect landing of the #HerculesX8 with a heavy pa

Perfect landing of the #HerculesX8 with a heavy payload on a narrow and sloppy space. Industrial drones such the #HerculesX8 are meant to operate in far from ideal scenarios.
.
.
.
.
#dron #uas #rpa #hercules #uav #hyperspectral #latam #colombia #remotesensing #heavylifter

De camino a la certificación europea y al marcado

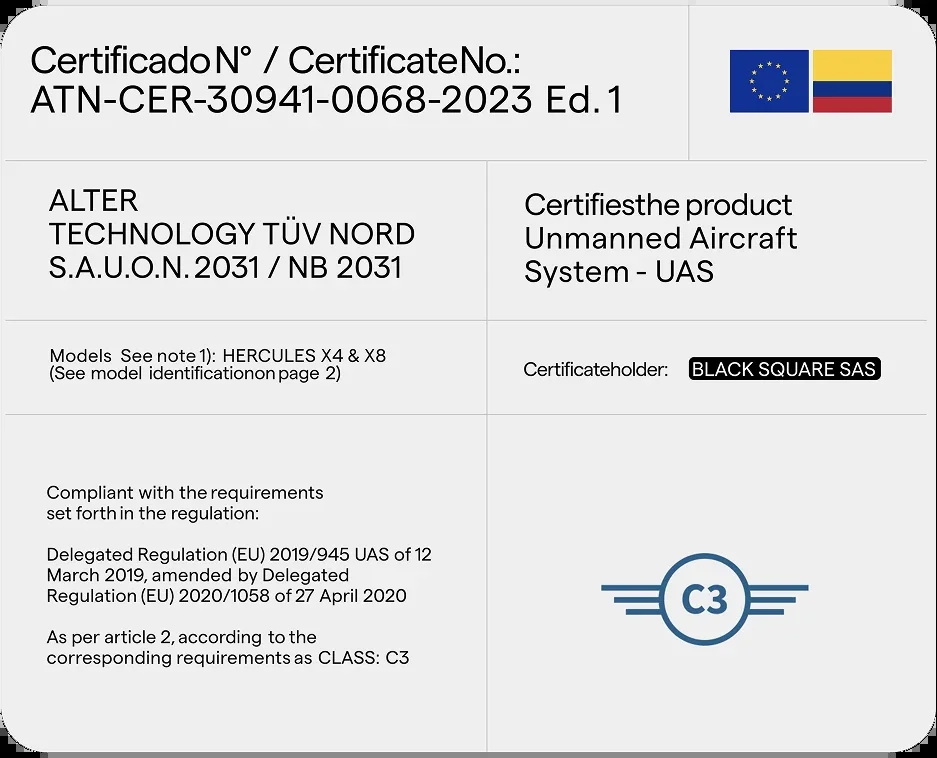

De camino a la certificación europea y al marcado CE para nuestra familia dron #Hercules: el #HerculesX4 (optimizado para cargas útiles entre 0-6 kg) y el #HerculesX8 (optimizado para cargas útiles entre 6-12 kg).

Todo es más fácil gracias a la profesionalidad del equipo de #AlterTechnology.

Muchas gracias también al equipo de #CubePilot y al equipo de #MissionPlanner. Su soporte técnico ha sido crucial en todo momento durante este proceso.

#dron #CE #certification #cubepilot #missionplanner #europe #uas #rpa #uas #drones #latinoamerica #colombia #españa #europa #heavylift

El mes pasado, en conjunto con varios equipos del

El mes pasado, en conjunto con varios equipos del Centro de Investigación Aeroespacial, participamos en una campaña internacional sobre el uso de los drones.
@hyspex
@mcgillu
@europeanspaceagency

#drones #uav #rpa #uas #hiperespectral #innovacion #remotesensing

https://linkedin.com/posts/national-research-council_aaezrocnrc-imageriehyperspectrale-drones-activity-6963578765964697600-xbsv?utm_source=share&utm_medium=member_desktop

Visítanos "Congreso Nacional de Minería – Ener

Visítanos "Congreso Nacional de Minería – Energía, vida y futuro" stand 23. Los esperamos para hablar de la oferta que tenemos de Servicios de Remote Sensing con Drones para la Exploración Minera. #FelizViernes
.
.
.
.
@pioneerexploration / @acmineria_col

#energía #minería #drones #magnetometria #hiperespectral #lidar #topografia #uas #uav #rpa #remotesensing

Perfect Balance #felizmartes . . . . On stage: Her

Perfect Balance #felizmartes
.
.
.
.
On stage: Hercules X8 Drone - @blacksquaresas , Hyperspectral Sensor Mjornil - @hyspex , LIDAR - @velodynelidar Lidar & an amazing blue sky

#uas #uav #rpa #drone #hyperspectral #lidar #heavylift #industrial #geoscience #geophysics #surveying #dronesurvey

¿Comenzamos? . . . . #manufacturing #dron #uas #h

¿Comenzamos?
.
.
.
.
#manufacturing #dron #uas #heavylifter #felizjueves

CARTAGENA – ASBESTOS PROJECT PHASE 1/3: DATA AC

CARTAGENA – ASBESTOS PROJECT

PHASE 1/3: DATA ACQUISITION

Asbestos is known for being a group of natural minerals that form fibers resistant to heat and many chemicals, and for this reason, it has been used for the construction of buildings, houses, schools, roofs, among other products. Since the mid-20th century, asbestos has been studied for being the cause of different lung diseases such as lung cancer, which is why it has been banned in many European countries. Today #Colombia is part of that list of countries that have said NO to this material, this through Law 1968 of 2019, also known as the Ana Cecilia Niño Law.

@BlackSquareSAS has been hired by the @UniCartagena to fly over the entire city of #Cartagena, in an aircraft equipped with state-of-the-art hyperspectral sensors from @HySpex. The main goal of the project is to use airborne hyperspectral data to detect the presence of roofs built with asbestos throughout the city. This project is the first time that hyperspectral technology has been applied on city-scale in Latin America, and we hope that with the results of the project, other cities will be encouraged to implement this technology to detect asbestos in their roofs.

Below is a video taken from the sensor operator on the aircraft during the PHASE 1/3: DATA ACQUISITION. We will share more information about the next phases very soon…

We would like to thanks @HySpex, #GeoCam, and @UniCartagena, for their support and their contributions on this project. Together we have formed the best team possible to address this important challenge.

#colombia #latam #team #technology #project #data #analyst #remotesensing #hyperspectral #sensors #aircraft #latinamerica #asbestos #roofs #lidar #maps

Testing a novel integration of Lidar + Photogramme

Testing a novel integration of Lidar + Photogrammetry + Hyperspectral, all in one system, for high fidelity airborne surveys in Colombia and South America.

Want to know what is going to be about our first airborne campaign?

On stage: @hyspex / @riegllidar / @phaseonephoto

#Innovation #colombia #remotesensing #hyperspectral #lidar #Photogrammetry #latam #flight #research #development

Orgullosos de pertenecer al ecosistema innovador p

Orgullosos de pertenecer al ecosistema innovador promovido por @colombiaproductiva y @senacomunica #SENAInnova
.
.
.

Proyecto: Desarrollo de un Prototipo de Sensor de Bajo Costo Calibrado para la Generación de Mapas de Diagnóstico en Cultivos de Caña Panelera
#innovation #Colombia #desarrollo #sensores #agricultura #agrotech

#FelizViernes . . . Foto: Servicio de fotogrametr

#FelizViernes
.
.
.

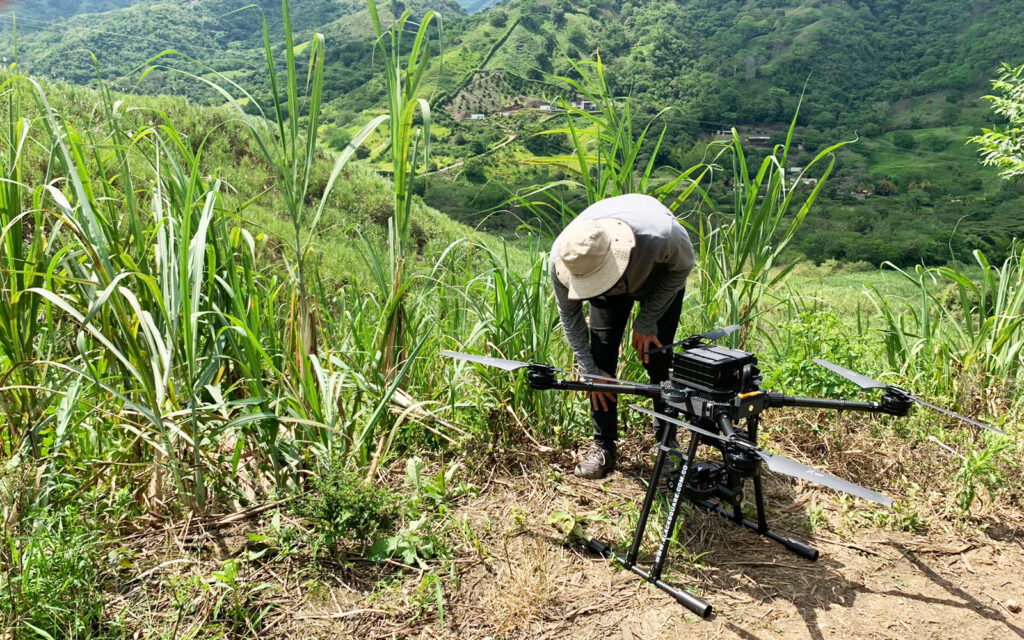

Foto: Servicio de fotogrametría con Dron HERCULES X4 - @blacksquaresas

#Colombia #dron #agricultura #agriculture #ortomosaico #cartografía #mapas #innovacion #innovation #HechoEnColombia

¡El trabajo continúa! Esta vez la operación de

¡El trabajo continúa!

Esta vez la operación del HERCULES X8 es sobre cultivos de caña panelera.
Payload: Sensor Hiperespectral Mjolnir VS-620 - @hyspex

#Drone #Hiperespectral #Colombia #Innovation #agricultura #caña #UAS #UAV #RPA #cundinamarca

Sobrevuelo de cultivos de aguacates en Villeta - C

Sobrevuelo de cultivos de aguacates en Villeta - Cundinamarca para estudios nutricionales con el dron industrial HERCULES X8 - @blacksquaresas equipado en el sensor hiperespectral Mjolnir VS-620 - @hyspex

#Drone #Hyperspectral #Colombia #Innovation #agricultura #Aguacate #Hiperespectrales #UAS #UAV #RPA

Our heavy lifter dron model HERCULES X8 has just f

Our heavy lifter dron model HERCULES X8 has just finished what is probably one of the largest survey ever done, integrating dron + lidar + high-end hyperspectral sensor, for mining exploratory purposes.
· 60 km of flights
· 1.5 km2 covered
· 25 flights
· 2.5 TB of data
· 3 working days
For this project we teamed up with @hyspex , a lead hyperspectral sensor manufacturer from Norway, and @pioneerexploration, geophysic services provider company from Canada. Great team ! And looking forward for the next challenge!
#hyperspectral #lidar #heavylifter #dron #mining #exploration #uas #rpas

We are proud to have contributed to this incredibl

We are proud to have contributed to this incredible milestone, and that one of our models it is shown in the frontpage! Now the next step is to proceed with the actual certification, so our Hercules model X4 and model X8 become one of the very first class C6 dron to get CE label for Europe (if not the first!).

Congrats to #ALTERTECHNOLOGY for such big achievement !

#drones #regulation #europe #uav #rpa #innovation #technology
https://lnkd.in/d7TFHc9g

An Agro Start is Born! @blacksquaresas team is at

An Agro Start is Born!

@blacksquaresas team is attending Expo Agrofuturo 2021, in #Medellin, Colombia.

We can’t be in better company than with a Black Square’s Hercules X4 equipped with a Sony payload at our left and a Black Square’s Hercules X8 equipped with a @hyspex payload at our right.

#agro #colombia #hyperspectral #innovation #dron #uav #drones #robotic #agriculture #agstar

Last weekend we had the opportunity to participate

Last weekend we had the opportunity to participate in #Chocoshow 2021 in #Corferias, in #Bogotá city, #Colombia, an event exclusively devoted to the cocoa industry.

In such event, we introduce for the first time the prototype of our “Machine for the classification in real time of entire cocoa beans based on hyperspectral technology”. This machine allows, in the first stage, to separate cocoa bean from impurities, and in its second stage, to separate well fermented cocoa beans from wrong fermented cocoa beans. Thanks to this tool, producers would be able to negotiate better prices for each kilogram of cocoa beans, since they now can guarantee an excellent quality to the buyers.

The event allows us to meet the potential users of the tools and receive their feedbacks. And the conclusion was unanimous: they were looking for a machine like this for many years!

We finish the event with the feeling of having validated a business idea with a great potential to change many lives. Thanks to @hyspex for their support and being the supplier of the heart of this machine, i.e, the hyperspectral sensors. Thanks to #Prediktera for their support and being the supplier of the key software which allows the communication between the sensors and the pneumatic system. Thanks to @senacomunica for their support providing the cocoa expertise. Thanks to @minciencias_co for having funded this innovative project. And of course, thanks to the @BlackSquareSAS team, all of them, tenacious and audacious engineers with a clear goal in mind: to shape the technology for changing lives.

This is just the beginning ! It is time to work!
#technology #team #opportunity #event #project #hyperspectral #innovation #cocoa

Close look to the separation subsystem of our Coco

Close look to the separation subsystem of our Cocoa Hyperspectral Optical Sorting Machine, based on @hyspex sensors, designed and manufactured by @blacksquaresas . After several iterations, we finally decided to go with this pneumatic-mecanic hybrid alternative: the electrovalve moves a cylinder with air coming from a compressor, which in turns deviates the falling parabolic trayectory of the cocoa bean.

Eventually, when the hyperspectral mathematical model is in place, different actions may happen in a single channel: 1) if cocoa beans is class A, it moves first row of cilinders; 2) if cocoa beans is class B, it moves second row of cilinders; and 3) if cocoa beans is class C, nothing happens. At the end of the sorting process, the machine has separated incoming cocoa grains, in a non-destructive manner, in three different quality classes.
#hyperspectral #innovation #agriculture #blacksquare #cocoa #colombia #latinamerica
